1. Raw material configuration: According to customer requirements, a certain proportion of the raw materials of cat litter particles are pre-mixed and prepared, and the raw materials after the preparation are entered into a double-shaft paddle mixer for full mixing.
2.Mixing and stirring: The pre-mixed raw materials are manually fed into the double-shaft paddle mixer for further mixing and stirring. During the mixing process, guar gum, calcium carbonate, flavor, and a certain proportion of fresh water are added according to the needs. , The ratio of water and powdered raw materials is about 1:10. The raw material preparation and mixing process is fully enclosed, and there is no dust emission.
3.Granulation: After the cat litter materials are fully mixed and stirred, they are sent to the cat litter pellet-making machine through a closed belt conveyor for granulation. After granulation, the water content of the cat litter is about 20%.
4.Cat litter pellets drying: The granulated cat litter is sent to the drying tunnel through a closed conveyor belt with a plexiglass observation hole. Then use a natural gas hot blast stove for drying, and the finished cat litter after drying has a moisture content, control it at about 9.2%. The unqualified products are screened in the drying tunnel, and the unqualified products enter the mixing and mixer for reprocessing. The entire pelletizing and drying process is operated in a closed device. The drying machine has a cyclone system, and the hot air circulates inside. The humidity inside When a certain value is reached, moisture will be discharged and no dust will be discharged. Only the combustion exhaust gas of the natural gas hot blast stove is discharged at the top through a 15m exhaust pipe.
5.Fan cooling: The qualified cat litter after drying enters the fan cooling system for cooling.
6.Automatic packaging: the cooled cat litter enters the silo to be packaged, and the bag is sealed by an automatic vacuum baler and then enters the finished product warehouse for temporary storage.

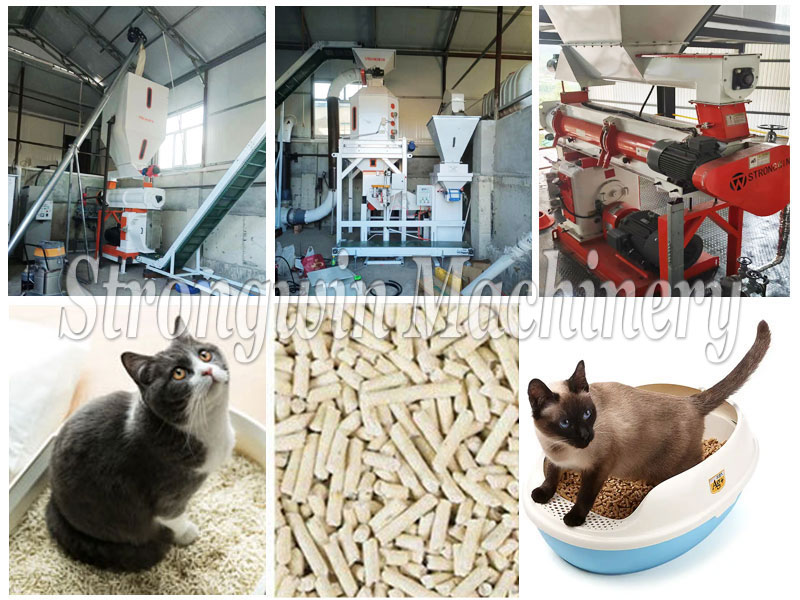

Application: can be used to process crystal cat litter, bentonite cat litter, tofu cat litter, pine wood cat litter, grain cat litter, zeolite cat litter, etc.
After installation and adjustment,we will train our customers work how to operate;
Training worker how to maintain and protect
According to features, we will make complete maintenance rules for you, containing how to maintain, when to maintain, and who maintains)
Our company after-sale department will call you at regular intervals, ask if maintain and give advice.
